Manual Chain Hoists
Manual chain hoists are essential equipment for lifting and moving loads in various sectors, such as civil construction, industries, and workshops. Their main advantage is manual operation, which eliminates the need for power sources.
These are compact and robust pieces of equipment for material lifting, ensuring safety and efficiency in operation.
Check out our solutions:
| Duren by Kito Manual Hoists | Duren by Planeta Manual Hoists |

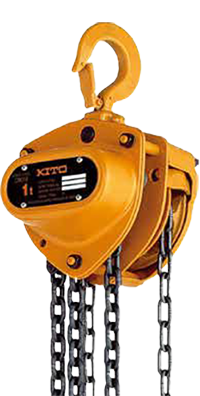

Duren by Kito Manual Hoists
Key Product Features:
Thick-walled steel casing, with the brake mechanism located in the core of the hoist, well protected by the casing;
Dry-type, asbestos-free mechanical brake, offering excellent braking power and safety;
Stops that prevent excessive lowering, stopping the load from being lowered too much and the chain from detaching from the mechanism. Load chains are made from a specially developed and heat-treated steel alloy.
| Type | Load Capacity (kg) x Chain Length to lift load 1m (m) | |||||
| 5000 | 1000 | 1500 | 2000 | 3000 | 5000 | |
| Chain | 25 | 43 | 57 | 70 | 114 | 198 |
|
Standard Hook Path: 3.0 m Optional: With Manual Trolley or Chain-Operated Mechanical Trolley Load Capacities: Up to 50,000 kg for the CB model |
||||||

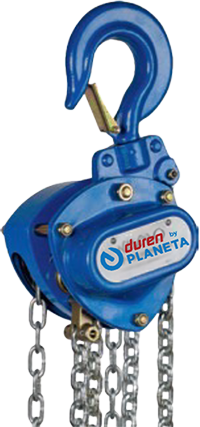

Duren by Planeta Manual Hoists
Key Product Features:
The safety brake engages immediately when operation is interrupted, keeping the load secure in any position;
The casings are made of steel, and the hook support and sheaves are cast steel, providing robustness and high resistance to the equipment. The PRO version can also be chrome-plated with anti-corrosion protection and an overload lockout system.
High-quality, hot-dip galvanized load chain.
| Type | Load Capacity (kg) x Chain Length to lift load 1m (m) | |||||
| 5000 | 1000 | 1500 | 2000 | 3000 | 5000 | |
| Chain | 25,5 | 41,5 | 44,8 | 82,9 | 89,6 | 154,9 |
| Standard Hook Path: 3.0 m Optionals: 1) With Manual Trolley or Chain-Operated Mechanical Trolley 2) Stainless Steel Casing and Chain 3) Equipment for explosive atmospheres ("Ex Design") Load Capacities: Up to 10,000 kg for the PULLMASTER-II model. Versions in other models for load capacities up to 30,000 kg. |
||||||
