Electric Wire Rope Hoists
Wire rope hoists are essential equipment for lifting and moving loads in industrial environments. Designed to offer safety, strength, and durability, they are ideal for operations requiring high performance and reliability.
Key Product Features:
Safety: equipped with an overload limiter;
Motor power cutoff in case of excessive lifting/lowering to prevent accidents, via upper and lower limit switches;
Duty cycle classification up to M6 (3m) to withstand long periods of operation in demanding environments, with reinforced structure and high-quality components;
Electromagnetic disc brake;
Safety monitoring system;
Frequency inverters on trolley travel motors and an inverter option also for lifting motors, providing smooth acceleration ramps and greater safety, in addition to protecting the brake.
Check out our solutions:
| Single Girder Overhead Crane Hoists | Double Girder Overhead Crane Hoists | Monorail Hoists |
Single Girder Overhead
Crane Hoists Standard Hook Path: 9.0 m
Motorized trolley travel: (20.0 / 3.0 m/min)
| Type | Load Capacity (kg) x Speeds (m/min) | ||||||||
| 2000 | 3200 | 5000 | 6300 | 8000 | 10000 | 12500 | 15000 | 20000 | |
| Chain | 12,0/2,0 | 9,6/1,6 | 9,6/1,6 | 9,6/1,6 | 9,6/1,6 | 9,6/1,6 | 6,0/1,0 | 6,0/1,0 | 6,0/1,0 |
| ISO/FEM Classification | M6/3m | M6/3m | M6/3m | M5/2m | M6/3m | M5/2m | M6/3m | M5/2m | M4/1Am |

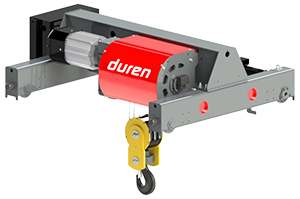

Double Girder Overhead Crane Hoists
Standard Hook Path: 9.0 m
Motorized trolley travel: (20.0 / 3.0 m/min) / (25.0 / 3.8 m/min)
| Type | Load Capacity (kg) x Speeds (m/min) | ||||||||
| 10000 | 15000 | 20000 | 25000 | 32000 | 40000 | 50000 | 63000 | 80000 | |
| Chain | 12,0/2,0 | 7,6/1,6 | 4,8/0,8 | 7,6/1,3 | 7,6/1,3 | 4,8/0,8 | 3,8/0,6 | 3,8/0,6 | 3,8/0,6 |
| ISO/FEM Classification | M5/2m | M5/2m | M6/3m | M6/3m | M5/2m | M6/3m | M6/3m | M5/2m | M4/1Am |
Monorail Hoists
Standard Hook Path: 9.0 m
Motorized trolley travel: (20.0 / 3.0 m/min) / (25.0 / 3.8 m/min)
Optional: Hoist with double grooved drum
| Type | Load Capacity (kg) x Speeds (m/min) | ||||||||
| 3200 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 20000 | |
| Chain | 19,2/3,2 | 9,6/1,6 | 9,6/1,6 | 9,6/1,6 | 9,6/1,6 | 9,6/1,6 | 7,6/1,3 | 4,8/0,8 | 4,8/0,8 |
| ISO/FEM Classification | M6/3m | M6/3m | M6/3m | M6/3m | M6/3m | M6/3m | M5/2m | M6/3m | M4/1Am |
