DR Modular Aluminum Systems
Also boasting great application versatility, the Modular Aluminum System is increasingly employed in the industry, largely due to its excellent ergonomics and low self-weight.
The engineering and extrusion process ensures high load capacity and lightness for the profiles, thanks to the structured and alveolar design of their walls.
As a major product differentiator, Duren manufactures in Brazil the DRAL180V Aluminum System, a version of the DR-AL180, featuring internal electrification within the profile and an Inspection Window complement for energy collector trolleys. These are excellent in applications utilizing many electrical devices, such as electric hoists, or those with long travel distances.
Check out our solutions:
| Overhead Crane | Monorail |

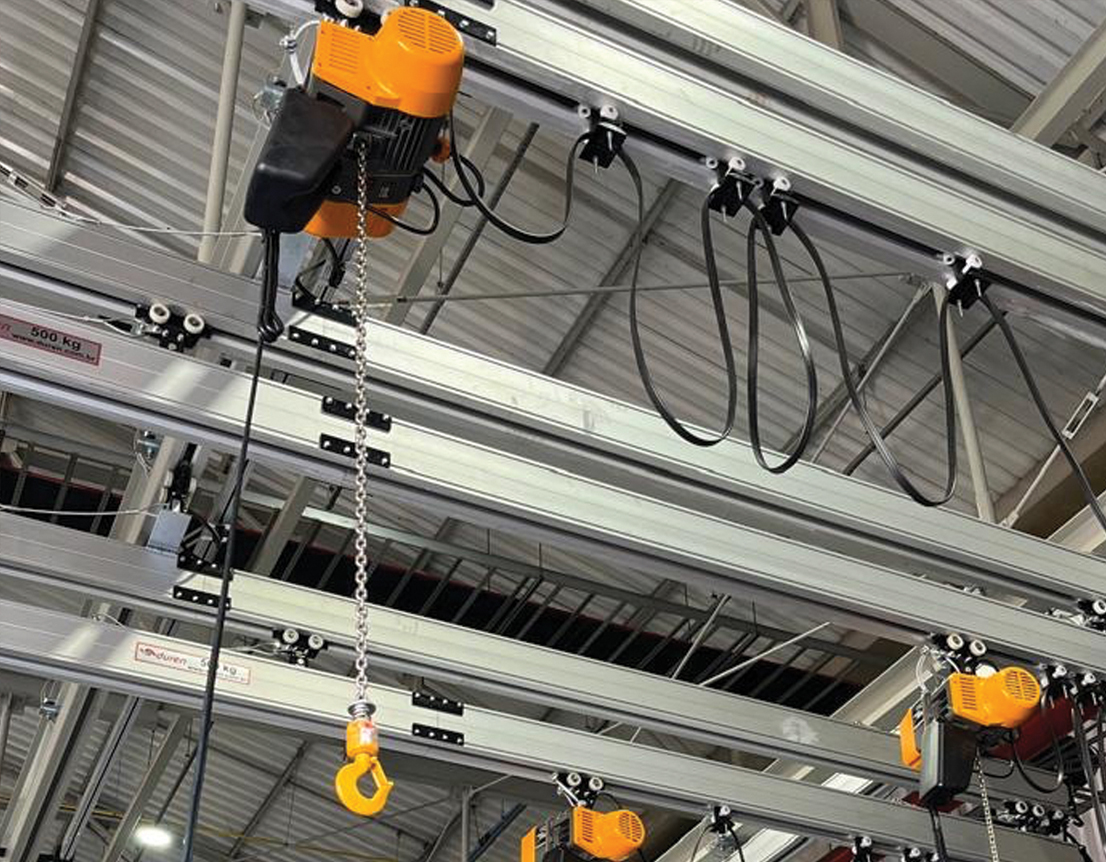

Overhead Crane
| DR PROFILE | Load Capacity (kg) | ||||
| 125 | 250 | 500 | 1000 | ||
| DR-AL120 | Ocl máx | 7,00 | 5,00 | 3,00 | - |
| Ocl máx | 2,90 | 2,50 | 2,00 | - | |
| DR-AL180 | Ocl máx | 8,00 | 8,00 | 8,00 | 5,00 |
| Ocl máx | 5,30 | 4,55 | 3,65 | 3,00 | |
| OCL = Overhead Crane Length | |||||
Monorail
| DR PROFILE | Load Capacity (kg) x Max. Hanger Spacing (Dbh) | |||
| 125 | 250 | 500 | 1000 | |
| DR-AL120 | 4,00 | 2,90 | 2,00 | 1,10 |
| DR-AL180 | 8,00 | 6,30 | 4,60 | 3,30 |
| DBH = Distance between Hangers | ||||
