Jib Crane
A Jib Crane is equipment that operates in confined spaces, widely applied for moving materials within a slewing radius of up to 360 degrees, facilitating the movement of materials of various dimensions.
They are completely independent and ideal for workstations, as well as for outdoor storage areas, loading/unloading ramps, or areas where other equipment cannot be used due to structural reasons.
They offer great versatility in their installation, being able to be mounted directly on almost all types of surfaces (Column Jib Crane) and even on existing concrete columns/walls or machine and facility pillars (Wall-Mounted Jib Crane).
| I-Beam Jib Crane | Modular Jib Crane |

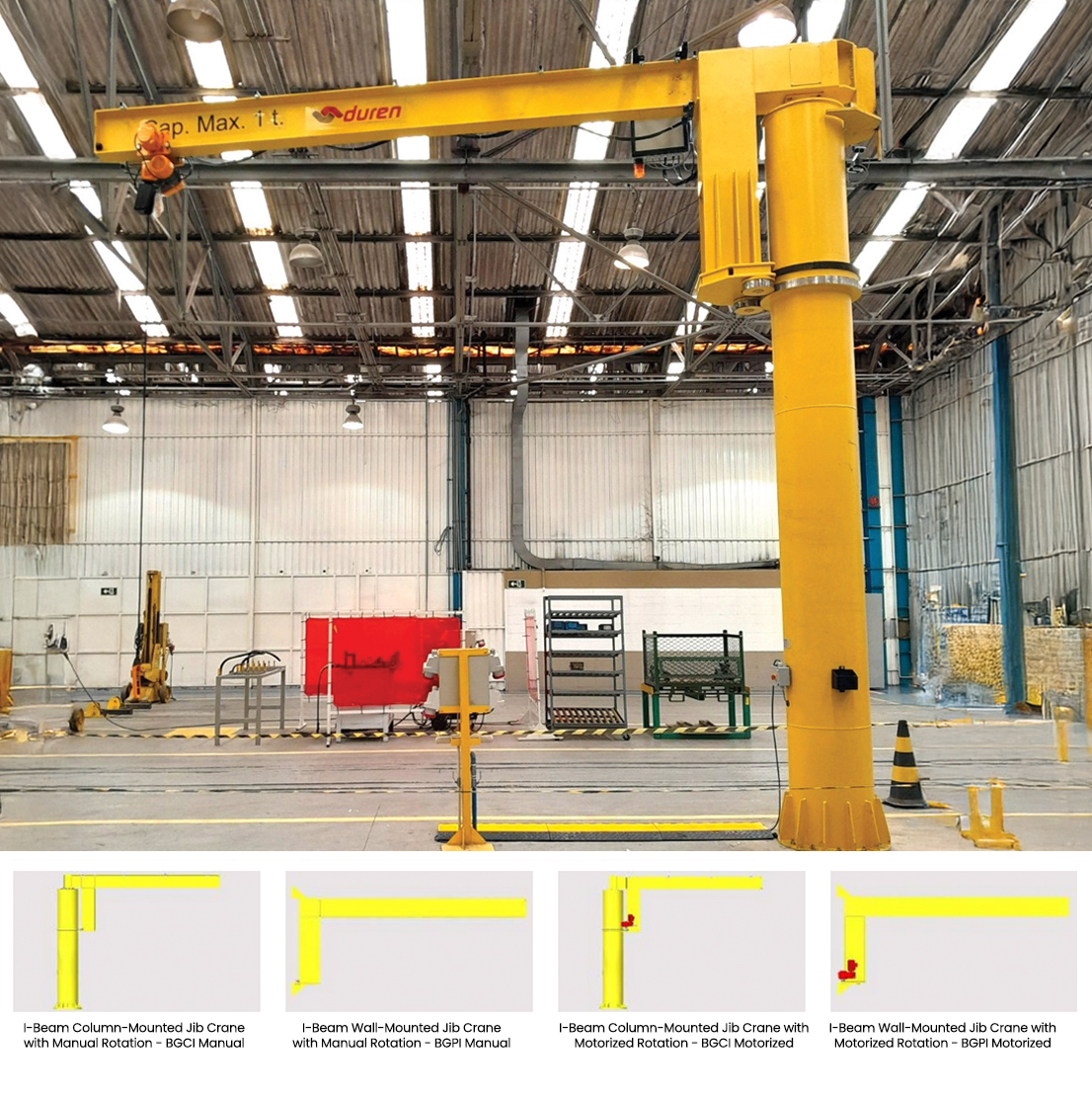

I-Beam Jib Crane
| CAP. (kg) | Laminated I-beam profile (mm) | Rotation Range | |||||||
| 2000 | 3000 | 4000 | 5000 | 6000 | 6500 | 7000 | BGC | BGP | |
| 500 | 360° | 180° | |||||||
| 800 | |||||||||
| 1000 | |||||||||
| 1600 | |||||||||
| 2000 | |||||||||
| 2500 | |||||||||
| 3200 | |||||||||

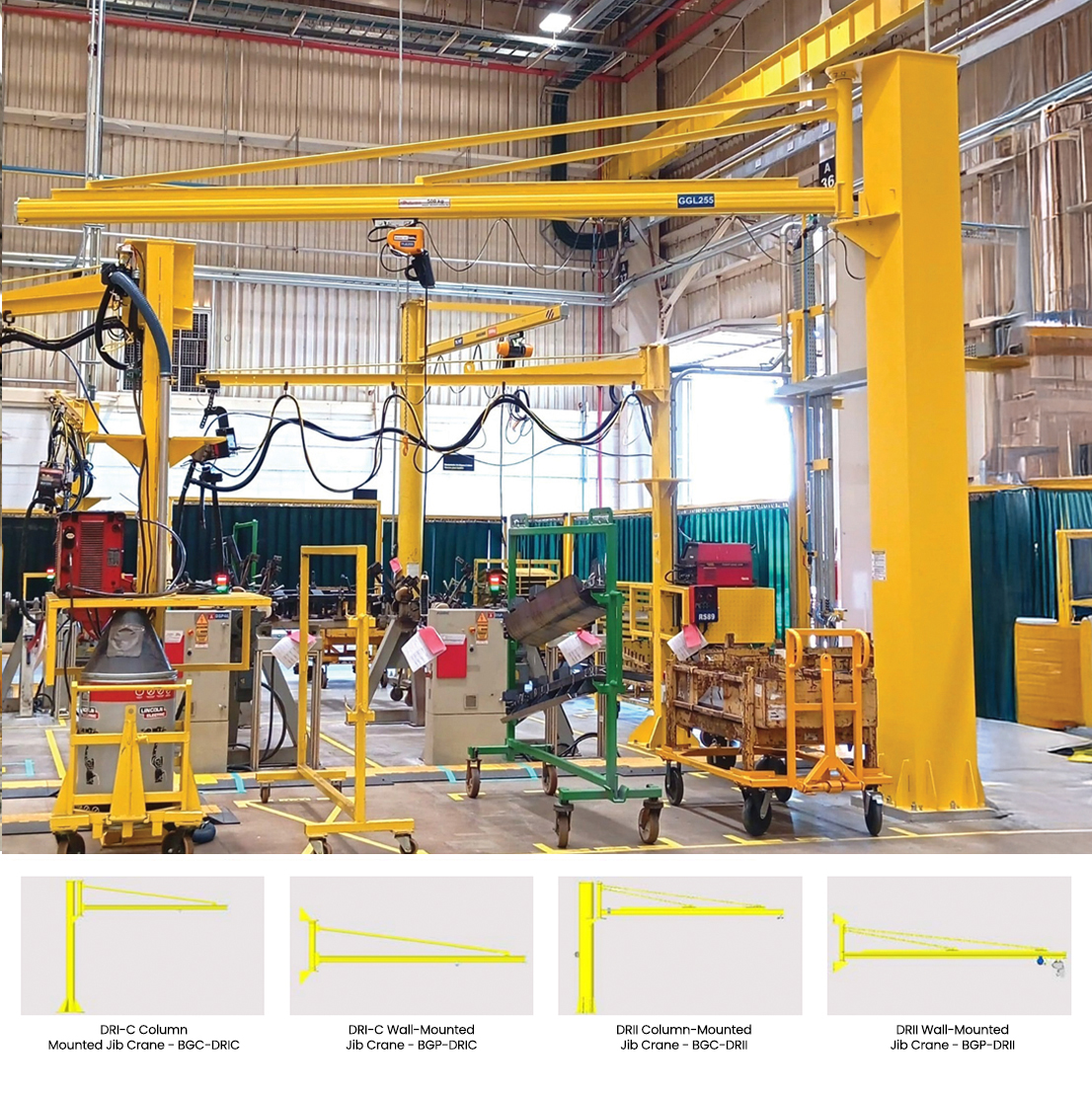

Modular Jib Crane
| CAP. (kg) | DR Modular profile (mm) | Rotation Range | ||||||
| 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | BGC | BGP | |
| 125 | 270° | 270° | ||||||
| 250 | ||||||||
| 500 | ||||||||
| 1000 | ||||||||
